Stage EJC 212z_214z_216z_220z

Pedestrian stacker 1.2 - 2.0t

  • 2400 - 6000 mm
  • 1200 - 2000 kg
  • Lift heights up to 6 m and high residual capacities.
  • Optional electric tiller steering for fatigue-free working.
  • Proportional hydraulics for precise and gentle lifting and lowering.

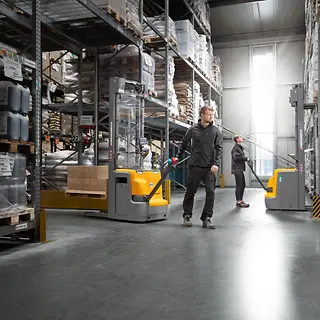

  • Efficient double-decker transport with support arm lift.
  • Long safety tiller and optimised view of the forks.

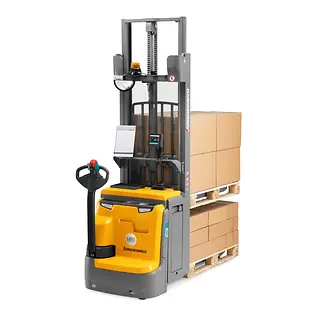

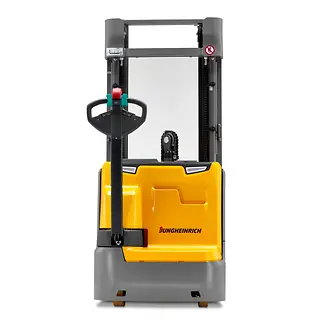

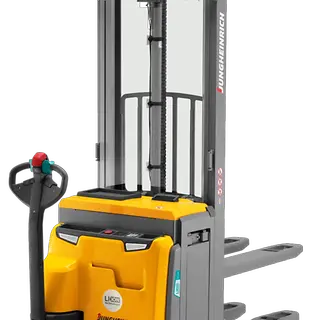

EJC 212z/ 214z/ 216z/ 220z

With its great lift height and high residual capacity, the powerful and robust EJC Series 2 is perfectly suited for intensive applications and for stacking of heavy cargo at great heights. Our assistance systems also guarantee safe and efficient load handling: operationCONTROL warns the operator when the residual capacity is exceeded, while positionCONTROL enables the selection of a predefined lifting height. Due to the additional support arm lift, uneven ground, thresholds or small ramps can be crossed with ease. The EJC 2z can also move two pallets at once, which increases throughput immensely when transporting goods. Due to the perfect balance of steering technology with our low-maintenance and powerful 3-phase AC technology the energy consumption of these robust stackers remains surprisingly low. The lift motor also convinces with its strong performance and is quiet, while allowing particularly gentle and precise stacking.

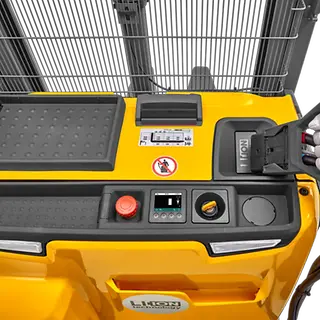

Li-Ion

Content Li-Ionen + 5 Jahre Logo
No worries. No compromise.

With the Jungheinrich Li-ion Guarantee Plus, we give you a long-term performance promise of up to 5 years on our high-quality lithium-ion batteries, so you can completely concentrate on your tasks without worrying.

We are convinced this decision is right for you. That‘s why we guarantee that you can easily and quickly switch back to the original technology at any time within the first 6 months – without stating reasons.

Learn more

Benefits

Telematik Box Erd

Connected Trucks

Use the data from your trucks to save time, energy and money and increase efficiency. Our Telematics box (ex factory) provides you with a free fleet management starter package that can be flexibly expanded with various hardware and software components.

Features

Model Overview

Model Load capacity Lift height Travel speed Overall length Battery voltage
EJC 212z 1,200 kg 6,000 mm 6 km/h 1,981 mm 24 V
EJC 214z 1,400 kg 6,000 mm 6 km/h 2,002 mm 24 V
EJC 216z 1,600 kg 6,000 mm 6 km/h 2,002 mm 24 V
EJC 220z 2,000 kg 6,000 mm 6 km/h 2,002 mm 24 V
